F series parallel-shaft helical gear units

The axis-parallel gear units have a slim design. Nonetheless, they offer a power range from 130 to 18,000 Nm. We think they are always a good choice when space is limited.

Design and torque are perfectly matched to limited installation space.

F series parallel-shaft helical gear units

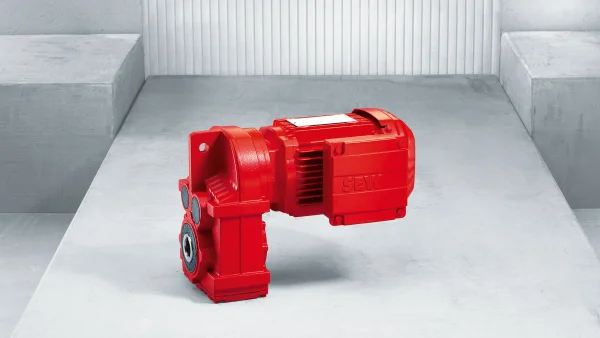

The figure shows a gearmotor with a parallel-shaft helical gear unit
The figure shows a gearmotor with a parallel-shaft helical gear unit

One of our best gear units for limited installation space. A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength.

With a high torque rating from 130 Nm to 18,000 Nm, our parallel-shaft helical gear units offer great performance in many conveying and processing applications.

You can choose from foot-, flange- or shaft-mounted options. For precise positioning tasks, our parallel-shaft helical gear units are available with reduced backlash.

Only half the solution without a motor? Then use our modular concept and combine the gear units of the F series with an AC motor to a F..DR.. parallel-shaft gearmotor, or with a servomotor to an F..CMP parallel-shaft helical servo gearmotor of your choice. Or simply choose the separate AC motor or servomotor that meets your requirements.

Configure your individual product

  • Detailed information about your individual product
  • CAD data and documentation for your configuration
Configure product now

Your benefits

  • Low space requirement

    due to a slim and compact design.
  • Wide range of applications

    thanks to 11 frame sizes (27 to 157) and numerous variants for very different requirements.
  • Always a powerful performance

    even in reduced backlash design with output torques from 200 Nm to 18,000 Nm.

Features

  • Slim design for limited installation space
  • Also available with reduced backlash
  • Available variants:
    • Foot- or flange-mounted
    • B5 or B14 flange-mounted
    • Solid shaft or hollow shaft
    • Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

Technical data

F series / sizes 27 / 37 / 47 / 57 / 67 / 77 / 87 / 97 / 107 / 127 / 157

Close table
Gear unit ratio i 3.77 – 281.71
Double gear unit reduction ratio i 87 – 31 434
Max. output torque Nm 130 – 18 000
Motor power range (Mounting via AM motor adapter) kW 0.12 – 200
We have stored a table for you here.

Areas of application

  • Conveyor applications
  • Chain conveyors
  • Process applications
  • Presses
  • Extruders
  • Screw conveyors
  • Gantry cranes
